3 Pin Sumitomo Sealed Connectors TS Alternator Plug Connector 6189-0442 90980-11349

Name: 3 Pin Sumitomo Sealed Connectors TS Alternator Plug Connector 61890442 9098011349
Brand: YBADDVANCE
Price: 1 USD

Quality 3 Pin Sumitomo Sealed Connectors TS Alternator Plug Connector 6189-0442 90980-11349 for sale

Brand Name : YBADDVANCE

Model Number : 6189-0442 90980-11349

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 units

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal , credit card

Supply Ability : 50,000 units/moth

Delivery Time : About 5-8 work days

Packaging Details : Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer

Color : Grey

Martial : PBT/PA66

P/N : 6189-0442 90980-11349

Feature : Waterproof

Type : Sumitomo 3 Pin Connector

HS code : 8536909000

Way : 3 hole

Gender : Female

WARRANTY : 1 year

PLACE OF ORIGIN : Shaanxi,China

Contact Now

3 Pin Sumitomo TS Alternator Plug connector 6189-0442 90980-11349

Description

3 Pin Sumitomo TS Alternator Plug connector For T oyota, L exus

Following are YBADDVANCE Connection Type :

Wire to Wire
Wire to Board
Wire to Device

Contact resistance :Initial 3mΩ Max.
after durability 10mΩ Max.
Leak current : 100μA Max.
Insulation resistance: 100MΩ Min.

The connectors have a maximum current capacity of 15 Amps and a temperature range of -40°C -120°C.

These connectors come with the terminals and seals

Sumitomo Part Number: 6189-0443 or 6189-0442
T oyota Part Number 90980-11349
K ubota Part Number 16678-6583-0

We can make the wire if you need it .

Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)

High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance

Specification

Item name	3 Pin Sumitomo TS Alternator Plug connector 6189-0442 90980-11349
P/N	6189-0442 90980-11349
Wire Size	18-22AWG
Operating Temperature range	-40℃~125℃
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	3 pin Sumitomo Connector
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	3 way
Color	Grey
Warranty	1 year
Application	Automoive Motorcycles

Product Picture Details

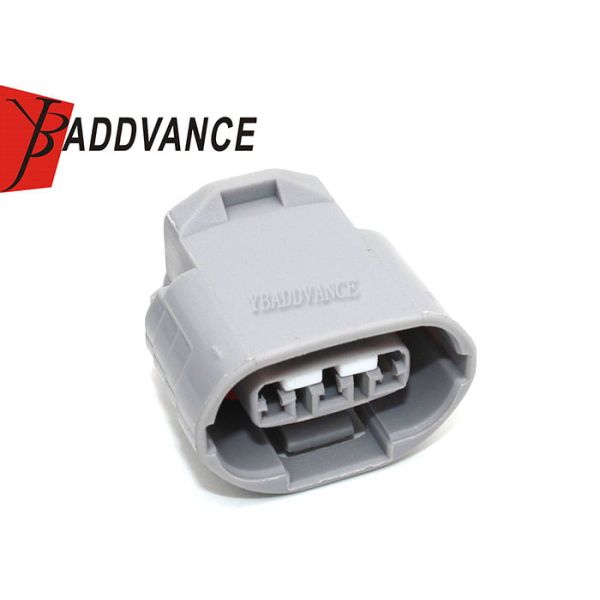

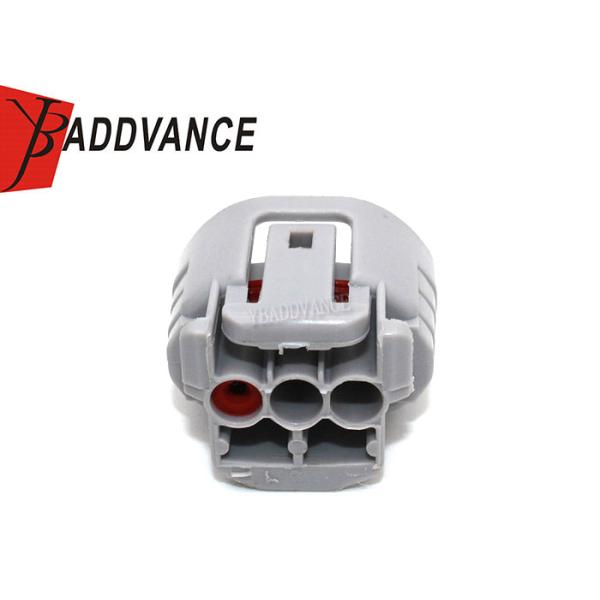

3 Pin Sumitomo Sealed Connectors TS Alternator Plug Connector 6189-0442 90980-11349
