Metri Pack 150 Series Weather Pack Connector 12162261 12066317 12162210

Name: Metri Pack 150 Series Weather Pack Connector 12162261 12066317 12162210
Brand: YBADDVANCE
Price: 1 USD

Quality Metri Pack 150 Series Weather Pack Connector 12162261 12066317 12162210 for sale

Brand Name : YBADDVANCE

Model Number : 12162261 12066317 12162210

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 units

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal , credit card

Supply Ability : 50,000 units/moth

Delivery Time : About 5-8 work days

Packaging Details : Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer

name : metri pack 150 series connector

Martial : PBT/PA66

P/N : 12162261 12066317 12162210

Gender : Female

HS code : 8536909000

Feature : Waterproof

Way : 6 hole

PLACE OF ORIGIN : Shaanxi,China

Contact Now

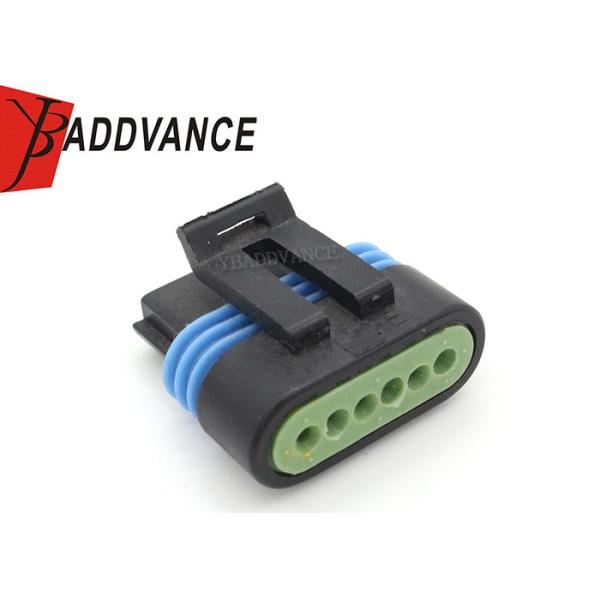

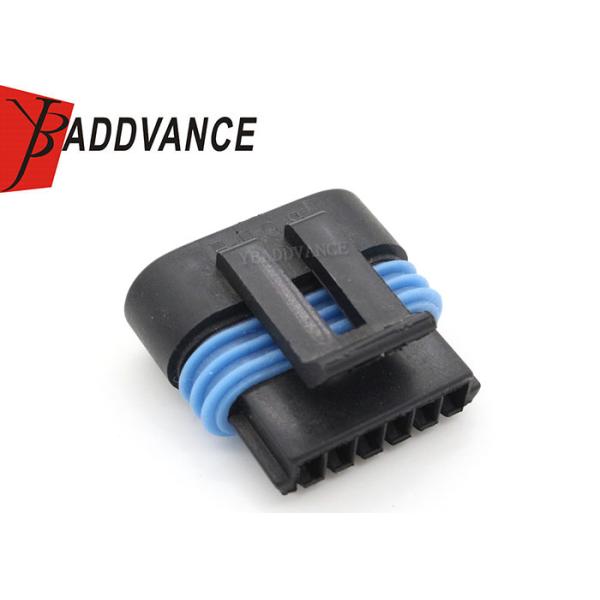

6 Way Female D elphi Metri Pack 150 Series Connector 12162261 12066317 12162210

Description

6 Way Female D elphi Metri Pack 150 Series Connector

The Metri-Pack Series 150 Sealed connectors are available with 1 to 10 cavities with contacts to suit two cable sizes (0.35-0.50 and 0.50-1.00mm2) catering for up to 14 Amps.

The 6 pin Connector Assembly are part of the 150.2 Pull-to-Seat variation which are specifically-designed for vehicle device applications.

Height : 15 mm

Width : 27.5 mm

Length :30.1 mm

Minimum Operating Temperature: -40°C
Maximum Operating Temperature: +125°C

Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)

These connectors come with the terminals and seals

High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance

Specification

Item name	6 Way Female D elphi Metri Pack 150 Series Connector 12162261 12066317 12162210
P/N	12162261 12066317 12162210
Wire Size	18-22AWG
Operating Temperature range	-40℃~125℃
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	6 pin sealed Connector
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	6 way
Color	Black
Warranty	1 year
Application	Automoive Motorcycles

Product Picture Details

Metri Pack 150 Series Weather Pack Connector 12162261 12066317 12162210
