3 Pin Metri-Pack 150.2 Pull to Seat Connector with Terminals 12162280
Description
3 Pin Metri-Pack 150.2 Pull to Seat Connector with Terminals
Metri-Pack terminals are different from Weather-Pack terminals in that the male terminals have flat pins, similar to a quick disconnect, rather than Weather-Pack's round pins
The Metri-Pack Series 150 Sealed connectors are available with 1 to 10 cavities with contacts to suit two cable sizes (0.35-0.50 and 0.50-1.00mm2) catering for up to 14 Amps.
These Metri-Pack 150.2 Pull-to-Seat automotive device connectors are for use with specific automotive applications.
Height : 17.4 mm
Width : 19.5 mm
Depth:27.1 mm
Minimum Operating Temperature: -40°C
Maximum Operating Temperature: +125°C
Following are YBADDVANCE Connection Type :
Wire to Wire
Wire to Board
Wire to Device
Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)
These connectors come with the terminals and seals
High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance
Specification
| Item name | 3 Pin Metri-Pack 150.2 Pull to Seat Connector with Terminals 12162280 |
| P/N | 12162280 |
| Wire Size | 18-22AWG |
| Operating Temperature range | -40℃~125℃ |
| Insulation resistance | 100M Min. |
| MOQ | 100 units/lot |
| Key words | 3 pin sealed Connector |
| Design Tooling | Sending us samples or drawing to design it |
| Delivery Time | About 5-8 work days |
| Sealed/Unsealed | sealed |
| Leak current | Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 3 way |
| Color | Grey |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

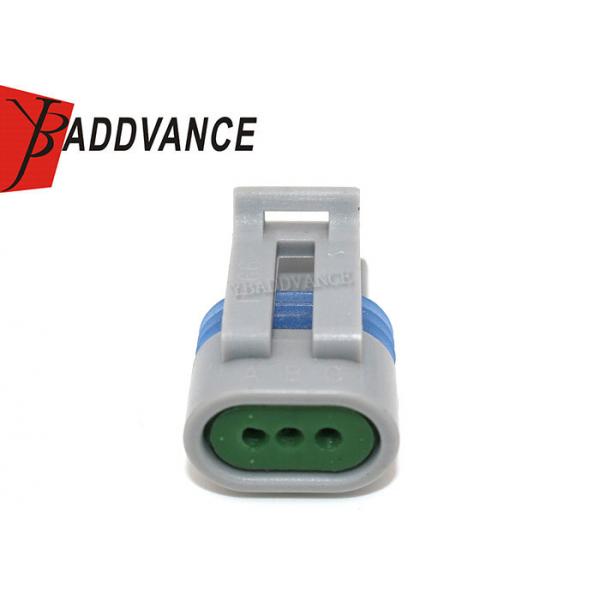

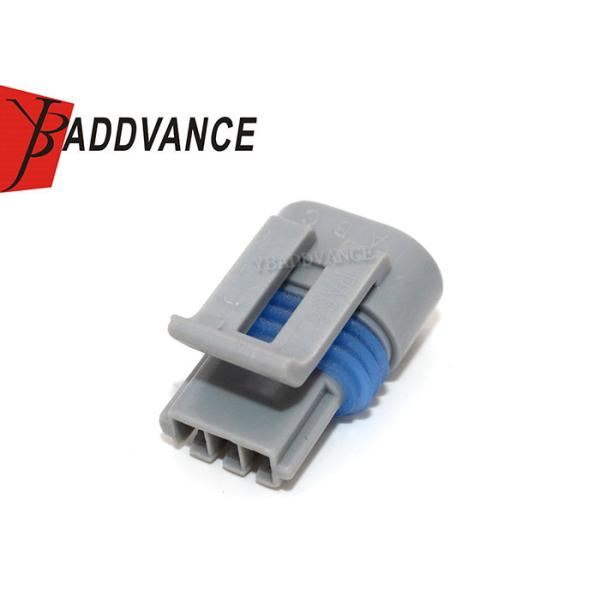

Product Picture Details
